amplifier
Table of Contents
Amplifier Details

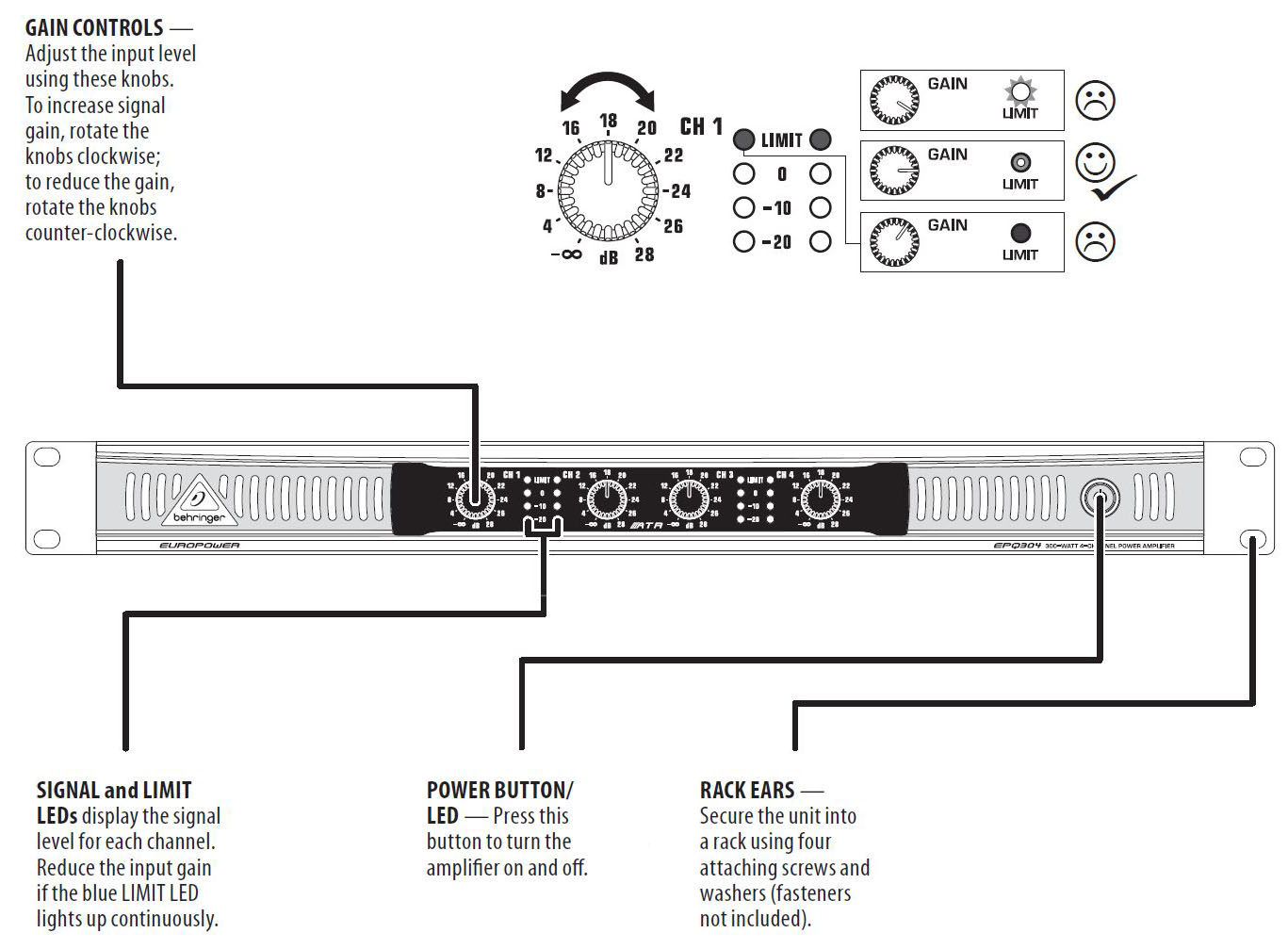

Front Panel

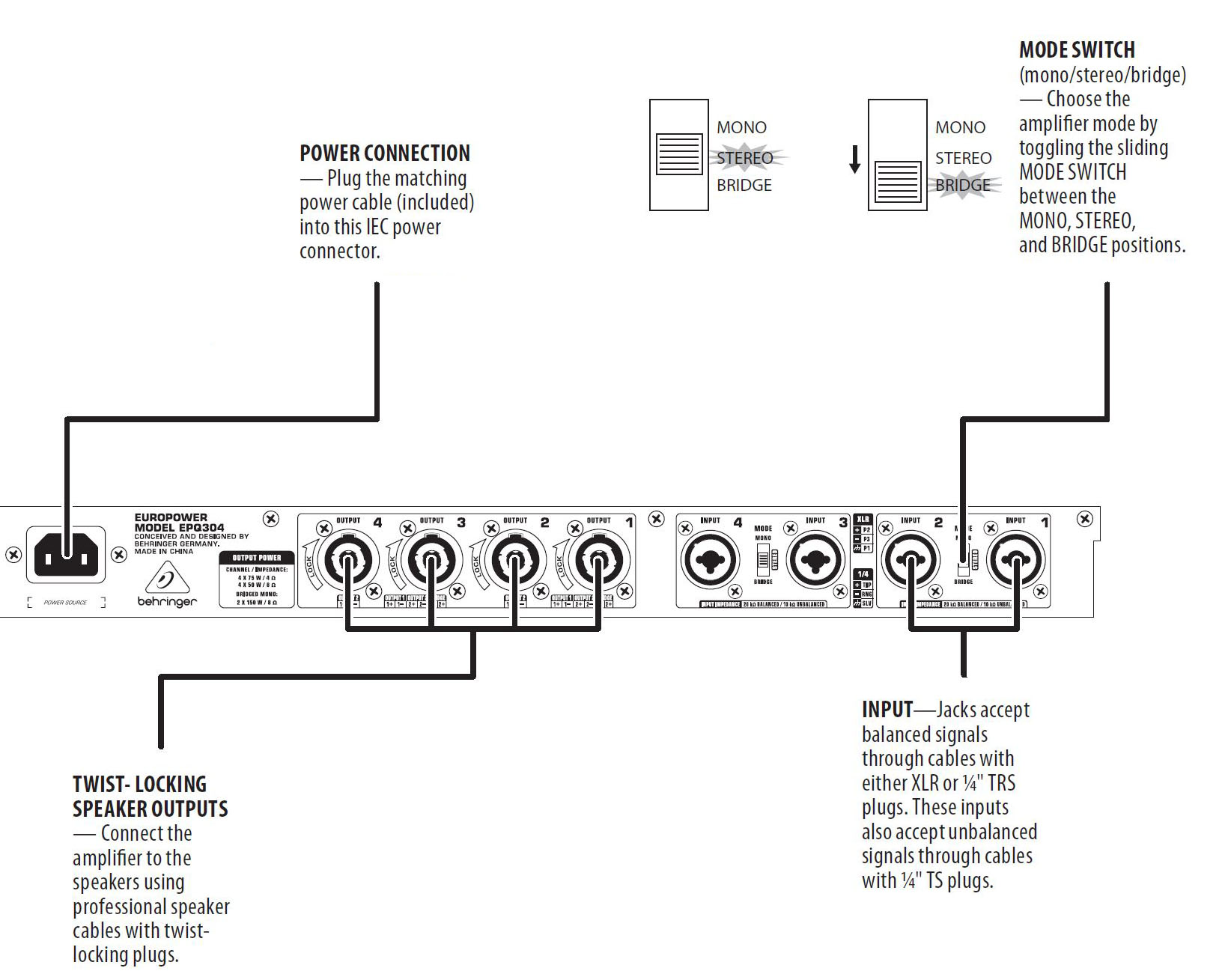

Rear Panel
Operation
Note: It is important to check the mode switch to ensure it is in stereo mode for all outputs.
Recommended configuration
| Input / Output Channel | S16 connection | Description |
|---|---|---|
| 1 | Output 1 | Monitor House Left |
| 2 | Output 2 | Monitor House Right |
| 3 | Output 7 | Main speakers House Left |
| 4 | Output 8 | Main speakers House Left |
Note: House Left is left when looking towards the satge.
