If using the S16 Snake, set this up first. The stages are:

• Set the S16 in position
• Add ethernet link
• Connect the inputs and outputs
• Configure the link

Detailed instructions

Connect the inputs to the X32 Desk / S16 Snake, plus main and monitor speakers. Suggested Setup

The small LCDs on each channel can be configured to display the function associate with them, eg the inputs can be set to say things like “Vocal”, “Guitar”, etc and also display an icon associated with the item. The colour of the display can also be changed to help differentiate different items, eg make all vocal mics green, guitars blue, keyboards yellow.

The procedure to set up the display is:

There are 6 buttons in the Mute Group area, which can be set to mute selected channels, eg mute all instruments, mute all except house mic, mute effects, etc.

Suggested configuration

The first stage is to set up the gain and settings for each input channel.

	Step	Notes
1	Press the View button in the Config/Pre-amp area to bring up the relevant screen (b)
2	Select the input channel you want to set up. Make sure you are on the right Channel set, ie 1-16 or 17-32, by pressing the relevant button next to the sliders
3	Move the channel slider to Unity / zero
4	Adjust the Gain using the Gain Knob to get the required input level (a) - do this either by ear or using the input meter on the display
5	Repeat for all other inputs

Note: During this stage, you can select which channels need Phantom Power - press the 48V button to switch it on (button illuminates when on).

The “O” button is used to invert the phase of amicrophone - this is only really necessary when two mics are picking up the same item, and one mic is out of phase causing the sound to be reduced.

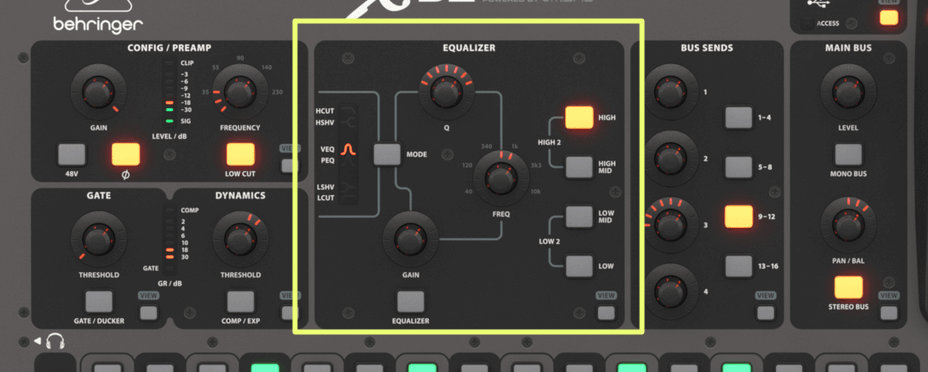

The EQ panel is located at the top left of the X32 desk, as shown below:

You can access the screen menu by pressing the View button in the Equaliser area.

The easiest way so assign an EQ to each channel is to select a preset setup embedded in the desk:

• Select the channel you want to assign the EQ to
• On the menu area, select the Library button. Along the left hand side of the screen, select the elements to be loaded (Usually just Equaliser)
• Scroll down the list of options to find the nearest instrument / voice and load
• Adjust to suit the actual input, eg if you have loaded the Female vocal, adjust the low level cut to a lower frequency.

It is useful to cut a little around the 220Hz frequency

To add an effect to a channel:

Select the channel to apply the effect to
On the Bus Sends area, select the 13-16 bank by pressing the lowest button Note: 9-12 is shown selected in the image
Adjust the Bus Sends 13 & 14 which are predefined with effects (14 has Reverb) - these are the 2 lower knobs

Note: add a Mute button to Bus Sends Ch 13 & Ch 14 to switch off effect, by:

• Select “Bus Master”
• Select “Mute Group”
• Press and hold a Mute button, say “5” and then select Ch 13 & Ch 14
• Unselect the “Mute Group” button

Assuming a single act…
